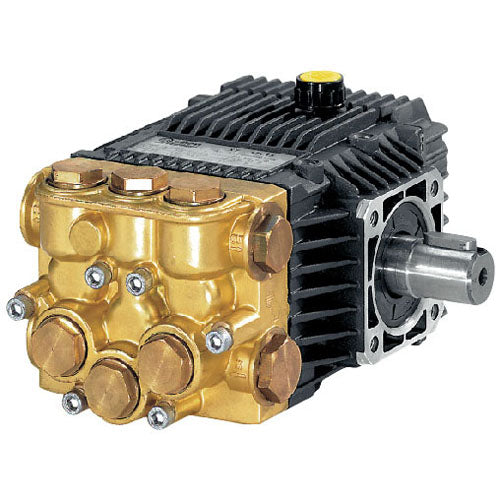

{"id":8460401115436,"title":"XT8.14N PUMP by AR PUMPS (3890)","handle":"xt8-14n-2-1gpm-2000psi-1450rpm-24mm-shaf","description":"\u003cp data-mce-fragment=\"1\"\u003eAnnovi Reverberi AR XT8.14N horizontal gas engine triplex plunger pump is rated up to 2.11 GPM at max 2000 PSI spins a 24mm solid shaft at 1450 RPM using a ½”F inlet and 3\/8\"F discharge thread. N version with a gas engine flange.\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\"\u003ePlunger Pumps are designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized needle bearing on the drive sides and ball bearings on the non-drive side assure proper shaft alignment and maximum life. Valve cages of special designed Ultra-Form impervious to water absorption provide positive seating and extended life. One-piece connecting rods are either a special alloy aluminum or bronze at higher pressures, oversized for strength and load disbursement.\u003c\/p\u003e\n\u003ch2 data-mce-fragment=\"1\"\u003eSPECIAL FEATURES\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cstrong\u003eWET END\u003c\/strong\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cspan style=\"text-decoration: underline;\" data-mce-style=\"text-decoration: underline;\"\u003eManifold:\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e• Forged Brass: Strength and no porosity equals long life. Higher hydrostatic pressures, safety, performance\u003cbr data-mce-fragment=\"1\"\u003e• Inlet and Discharge Ports: Heavy bosses for added strength\u003cbr data-mce-fragment=\"1\"\u003e• Offset Discharge Ports: High efficiency, smooth flow\u003cbr data-mce-fragment=\"1\"\u003e• Bolts: Six Bolts, 6mm, grade 12.9\u003cbr data-mce-fragment=\"1\"\u003eValves:\u003cbr data-mce-fragment=\"1\"\u003e• Ultra Form Cages: Durability, strength and long life\u003cbr data-mce-fragment=\"1\"\u003e• Poppets, Seat and Spring: 303 and 400 series stainless steel\u003cbr data-mce-fragment=\"1\"\u003e• Valve Caps: Machined brass – greater strength\u003cbr data-mce-fragment=\"1\"\u003ePacking and Plungers:\u003cbr data-mce-fragment=\"1\"\u003e• High Pressure Packing: “V” style (D-1) Buna-N (cotton duct weave base) strong and tightens under load\u003cbr data-mce-fragment=\"1\"\u003e• Low Pressure Seals: “U” cup double lip Buna-N. Good positive seal\u003cbr data-mce-fragment=\"1\"\u003e• Support Guides: Machined brass one-piece construction to assure proper plunger alignment and to maximize packing and seal life\u003cbr data-mce-fragment=\"1\"\u003e• Plungers: Are a special aluminum oxide blend, solid ceramic for long life, strong durability and more resilient.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cstrong\u003eDRIVE END\u003c\/strong\u003e\u003cbr data-mce-fragment=\"1\"\u003eBearings: Oversized for maximum life and load disbursement, two ball bearings on the solid shaft series and a needle bearing on the drive side and ball on the non-drive side for the hollow shaft series. Each bearing is held in position on the crankshaft and crankcase by snap rings. This assures positive alignment and centering of the connecting rods and crankshaft in relation to the crankcase, it also eliminates the crankshaft from floating\u003cbr data-mce-fragment=\"1\"\u003eCrankcase: Precision die-cast, large cooling fins and anodized (for maximum heat dissipation)\u003cbr data-mce-fragment=\"1\"\u003eRear Cover: Precision die-cast, precision punched gasket sealed and bayonet style sight glass for positive sealing and locking (no threads to loosen)\u003cbr data-mce-fragment=\"1\"\u003ePlunger Rods: Stainless steel construction for strength (no plating to scrape off). O-ring plunger sealing system\u003cbr data-mce-fragment=\"1\"\u003eRod Pins: Precision ground and hardened steel, oversized for load disbursement\u003cbr data-mce-fragment=\"1\"\u003eConnection Rods: One piece special alloy aluminum based and bronze, oversized for maximum strength, load disbursement, and life. Heavy pin area construction, for added load strength\u003cbr data-mce-fragment=\"1\"\u003eCrankshaft: Forged one-piece, precision ground and hardened for extremely long life and durability\u003cbr data-mce-fragment=\"1\"\u003eOil Seals and O-rings: All are constructed of Buna-N rubber. The O-rings have stainless steel garder springs to assure constant tension on the sealing surface\u003cbr data-mce-fragment=\"1\"\u003eOil Capacity: Flat cover 8 oz. and extended cover 10 oz.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cstrong\u003eEXTRA FEATURES\u003c\/strong\u003e\u003cbr data-mce-fragment=\"1\"\u003eDyno Proven: All pumps are dyno tested to assure the theoretical design meets the actual design\u003cbr data-mce-fragment=\"1\"\u003eValve Design: Each pump series has a valve design that optimizes its highest efficiency\u003cbr data-mce-fragment=\"1\"\u003eHot Water: High temperature kits are available to 180º F. Refer to breakdown\u003cbr data-mce-fragment=\"1\"\u003eWet End Repair: Very simple no special tools are required\u003cbr data-mce-fragment=\"1\"\u003eMounting Bolt Pattern: Same on the top and bottom of the crankcase for simple drive side change\u003cbr data-mce-fragment=\"1\"\u003eDesign: Using advanced fluid handling design programs. Overall pump efficiency is increased.\u003c\/p\u003e","published_at":"2023-07-17T11:03:19-04:00","created_at":"2023-07-17T11:03:22-04:00","vendor":"AR Pumps","type":"Pumps","tags":["2.1 GPM","2000 PSI","AR pumps","georgia power wash store","georgia pressure wash supplies","industrial pressure wash pumps","north american pressure wash outlet","North Georgia pressure wash supplies","power pressure wash supplies","power wash equipment","pressure wash equipment","pressure wash pumps","pressure wash supply store","XT8.14N"],"price":48712,"price_min":48712,"price_max":48712,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45725727424812,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"3890","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"XT8.14N PUMP by AR PUMPS (3890)","public_title":null,"options":["Default Title"],"price":48712,"weight":4990,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/XT_N_brass.jpg?v=1732225905","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/annovi-reverberi-logo-vector_17393975-9701-40e4-b91b-7243bd1c2fd1.jpg?v=1732225905"],"featured_image":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/XT_N_brass.jpg?v=1732225905","options":["Title"],"media":[{"alt":"XT8.14N PUMP by AR PUMPS ","id":40147766706476,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/XT_N_brass.jpg?v=1732225905"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/XT_N_brass.jpg?v=1732225905","width":500},{"alt":null,"id":40147766739244,"position":2,"preview_image":{"aspect_ratio":0.773,"height":792,"width":612,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/annovi-reverberi-logo-vector_17393975-9701-40e4-b91b-7243bd1c2fd1.jpg?v=1732225905"},"aspect_ratio":0.773,"height":792,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/annovi-reverberi-logo-vector_17393975-9701-40e4-b91b-7243bd1c2fd1.jpg?v=1732225905","width":612}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp data-mce-fragment=\"1\"\u003eAnnovi Reverberi AR XT8.14N horizontal gas engine triplex plunger pump is rated up to 2.11 GPM at max 2000 PSI spins a 24mm solid shaft at 1450 RPM using a ½”F inlet and 3\/8\"F discharge thread. N version with a gas engine flange.\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\"\u003ePlunger Pumps are designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized needle bearing on the drive sides and ball bearings on the non-drive side assure proper shaft alignment and maximum life. Valve cages of special designed Ultra-Form impervious to water absorption provide positive seating and extended life. One-piece connecting rods are either a special alloy aluminum or bronze at higher pressures, oversized for strength and load disbursement.\u003c\/p\u003e\n\u003ch2 data-mce-fragment=\"1\"\u003eSPECIAL FEATURES\u003c\/h2\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cstrong\u003eWET END\u003c\/strong\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cspan style=\"text-decoration: underline;\" data-mce-style=\"text-decoration: underline;\"\u003eManifold:\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e• Forged Brass: Strength and no porosity equals long life. Higher hydrostatic pressures, safety, performance\u003cbr data-mce-fragment=\"1\"\u003e• Inlet and Discharge Ports: Heavy bosses for added strength\u003cbr data-mce-fragment=\"1\"\u003e• Offset Discharge Ports: High efficiency, smooth flow\u003cbr data-mce-fragment=\"1\"\u003e• Bolts: Six Bolts, 6mm, grade 12.9\u003cbr data-mce-fragment=\"1\"\u003eValves:\u003cbr data-mce-fragment=\"1\"\u003e• Ultra Form Cages: Durability, strength and long life\u003cbr data-mce-fragment=\"1\"\u003e• Poppets, Seat and Spring: 303 and 400 series stainless steel\u003cbr data-mce-fragment=\"1\"\u003e• Valve Caps: Machined brass – greater strength\u003cbr data-mce-fragment=\"1\"\u003ePacking and Plungers:\u003cbr data-mce-fragment=\"1\"\u003e• High Pressure Packing: “V” style (D-1) Buna-N (cotton duct weave base) strong and tightens under load\u003cbr data-mce-fragment=\"1\"\u003e• Low Pressure Seals: “U” cup double lip Buna-N. Good positive seal\u003cbr data-mce-fragment=\"1\"\u003e• Support Guides: Machined brass one-piece construction to assure proper plunger alignment and to maximize packing and seal life\u003cbr data-mce-fragment=\"1\"\u003e• Plungers: Are a special aluminum oxide blend, solid ceramic for long life, strong durability and more resilient.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cstrong\u003eDRIVE END\u003c\/strong\u003e\u003cbr data-mce-fragment=\"1\"\u003eBearings: Oversized for maximum life and load disbursement, two ball bearings on the solid shaft series and a needle bearing on the drive side and ball on the non-drive side for the hollow shaft series. Each bearing is held in position on the crankshaft and crankcase by snap rings. This assures positive alignment and centering of the connecting rods and crankshaft in relation to the crankcase, it also eliminates the crankshaft from floating\u003cbr data-mce-fragment=\"1\"\u003eCrankcase: Precision die-cast, large cooling fins and anodized (for maximum heat dissipation)\u003cbr data-mce-fragment=\"1\"\u003eRear Cover: Precision die-cast, precision punched gasket sealed and bayonet style sight glass for positive sealing and locking (no threads to loosen)\u003cbr data-mce-fragment=\"1\"\u003ePlunger Rods: Stainless steel construction for strength (no plating to scrape off). O-ring plunger sealing system\u003cbr data-mce-fragment=\"1\"\u003eRod Pins: Precision ground and hardened steel, oversized for load disbursement\u003cbr data-mce-fragment=\"1\"\u003eConnection Rods: One piece special alloy aluminum based and bronze, oversized for maximum strength, load disbursement, and life. Heavy pin area construction, for added load strength\u003cbr data-mce-fragment=\"1\"\u003eCrankshaft: Forged one-piece, precision ground and hardened for extremely long life and durability\u003cbr data-mce-fragment=\"1\"\u003eOil Seals and O-rings: All are constructed of Buna-N rubber. The O-rings have stainless steel garder springs to assure constant tension on the sealing surface\u003cbr data-mce-fragment=\"1\"\u003eOil Capacity: Flat cover 8 oz. and extended cover 10 oz.\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cstrong\u003eEXTRA FEATURES\u003c\/strong\u003e\u003cbr data-mce-fragment=\"1\"\u003eDyno Proven: All pumps are dyno tested to assure the theoretical design meets the actual design\u003cbr data-mce-fragment=\"1\"\u003eValve Design: Each pump series has a valve design that optimizes its highest efficiency\u003cbr data-mce-fragment=\"1\"\u003eHot Water: High temperature kits are available to 180º F. Refer to breakdown\u003cbr data-mce-fragment=\"1\"\u003eWet End Repair: Very simple no special tools are required\u003cbr data-mce-fragment=\"1\"\u003eMounting Bolt Pattern: Same on the top and bottom of the crankcase for simple drive side change\u003cbr data-mce-fragment=\"1\"\u003eDesign: Using advanced fluid handling design programs. Overall pump efficiency is increased.\u003c\/p\u003e"}
