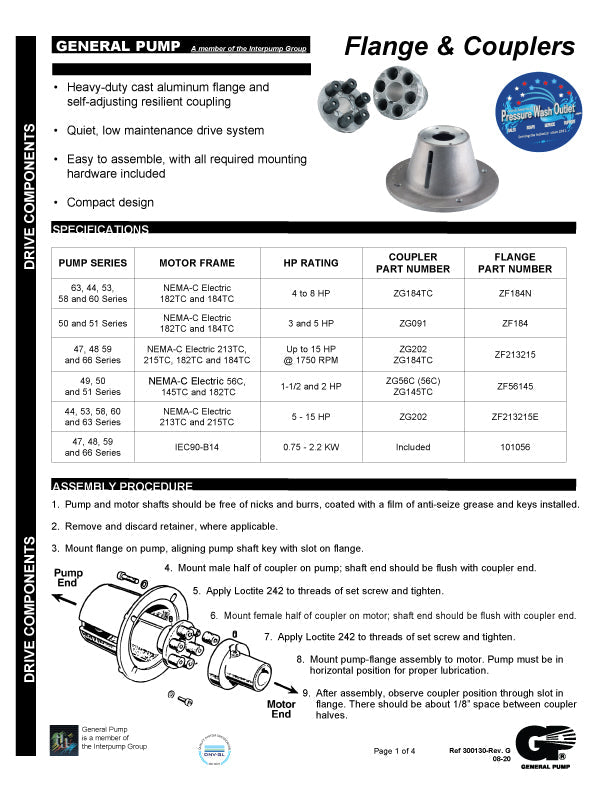

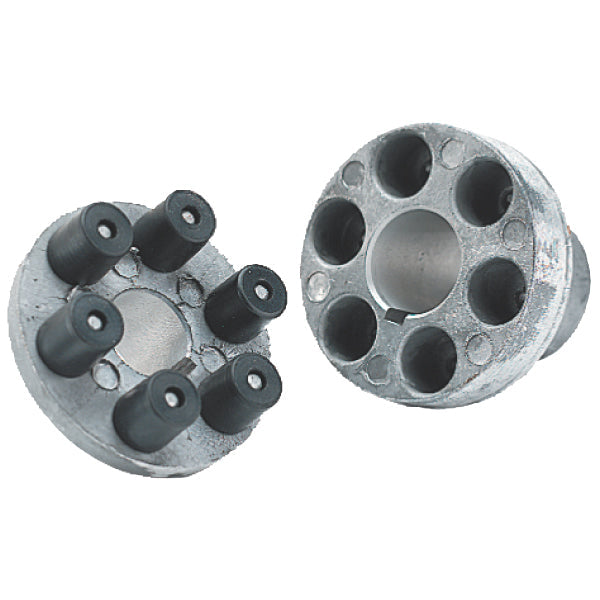

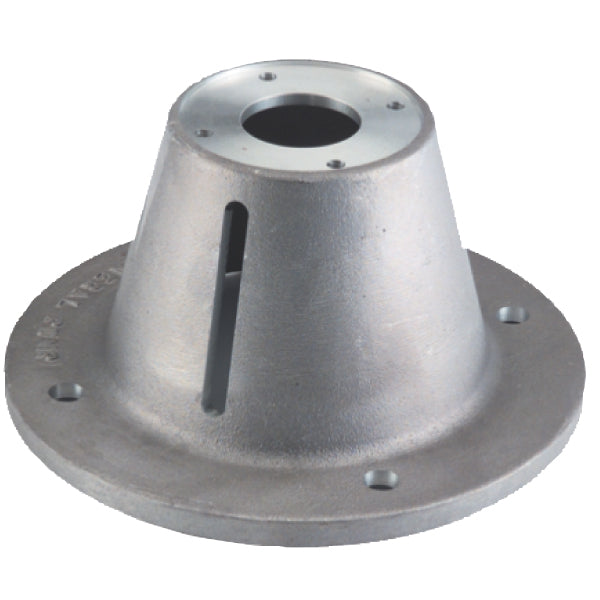

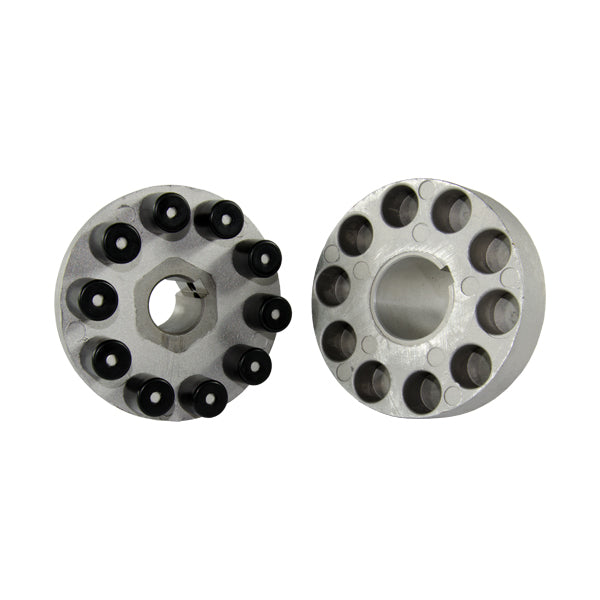

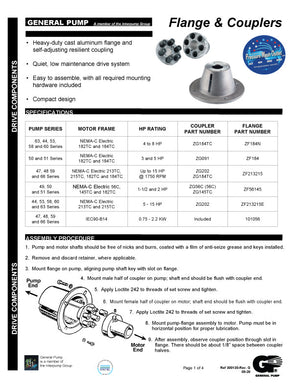

{"id":8459993907500,"title":"General Pump Electric Flange \u0026 Coupler | NEMA 56C Pump Motor Mount","handle":"electric-flange-couplers-by-general-pump","description":"\u003ch2\u003eGeneral Pump Electric Flanges \u0026amp; Couplers – NEMA 56C Motor Mount\u003c\/h2\u003e\u003cp\u003eConnect your General Pump to an electric motor cleanly and confidently with these \u003cstrong\u003eheavy-duty electric flanges and couplers\u003c\/strong\u003e. Engineered for quiet, low-maintenance operation, this cast aluminum flange and self-adjusting resilient coupling system is the professional-grade solution for electric-drive pressure washer builds and retrofits.\u003c\/p\u003e\u003ch3\u003eKey Features\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eHeavy-duty cast aluminum flange construction\u003c\/li\u003e\n\u003cli\u003eSelf-adjusting resilient coupling for quiet, smooth power transfer\u003c\/li\u003e\n\u003cli\u003eLow maintenance drive system\u003c\/li\u003e\n\u003cli\u003eCompact design for tight installations\u003c\/li\u003e\n\u003cli\u003eAll required mounting hardware included — ready to assemble\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eAssembly Instructions\u003c\/h3\u003e\u003col\u003e\n\u003cli\u003eEnsure pump and motor shafts are free of nicks and burrs; coat with anti-seize grease and install keys.\u003c\/li\u003e\n\u003cli\u003eRemove and discard retainer where applicable.\u003c\/li\u003e\n\u003cli\u003eMount flange on pump, aligning pump shaft key with slot on flange.\u003c\/li\u003e\n\u003cli\u003eMount male coupler half on pump — shaft end flush with coupler end. Apply Loctite 242 to set screw threads and tighten.\u003c\/li\u003e\n\u003cli\u003eMount female coupler half on motor — shaft end flush with coupler end. Apply Loctite 242 to set screw threads and tighten.\u003c\/li\u003e\n\u003cli\u003eMount pump-flange assembly to motor. \u003cstrong\u003ePump must be horizontal for proper lubrication.\u003c\/strong\u003e\n\u003c\/li\u003e\n\u003cli\u003eAfter assembly, verify ~1\/8\" space between coupler halves through the slot in the flange.\u003c\/li\u003e\n\u003c\/ol\u003e","published_at":"2023-07-17T09:21:37-04:00","created_at":"2023-07-17T09:21:41-04:00","vendor":"General Pump","type":"Pressure Washers","tags":["electric flange","electric flange couplers","General Pump","north american pressure wash outlet","parts for pressure washers","partsforpressurewashers","power wash equipment","pressure wash equipment","pressure wash parts delivered","pressure wash supply store"],"price":4809,"price_min":4809,"price_max":14951,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45724478406956,"title":"ZF 184 Flange (3443)","option1":"ZF 184 Flange (3443)","option2":null,"option3":null,"sku":"3443","requires_shipping":true,"taxable":true,"featured_image":{"id":53237735031084,"product_id":8459993907500,"position":1,"created_at":"2026-06-10T14:12:17-04:00","updated_at":"2026-06-10T14:12:20-04:00","alt":null,"width":600,"height":600,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZF184.jpg?v=1781115140","variant_ids":[45724478406956]},"available":true,"name":"General Pump Electric Flange \u0026 Coupler | NEMA 56C Pump Motor Mount - ZF 184 Flange (3443)","public_title":"ZF 184 Flange (3443)","options":["ZF 184 Flange (3443)"],"price":12439,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":44023970693420,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZF184.jpg?v=1781115140"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45724478439724,"title":"ZG184TC Flange (3375)","option1":"ZG184TC Flange (3375)","option2":null,"option3":null,"sku":"3375","requires_shipping":true,"taxable":true,"featured_image":{"id":53237735063852,"product_id":8459993907500,"position":2,"created_at":"2026-06-10T14:12:17-04:00","updated_at":"2026-06-10T14:12:19-04:00","alt":null,"width":600,"height":600,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG184TC_13a1707d-7bb0-4ab2-b5b7-f8b8c608fc7b.jpg?v=1781115139","variant_ids":[45724478439724]},"available":true,"name":"General Pump Electric Flange \u0026 Coupler | NEMA 56C Pump Motor Mount - ZG184TC Flange (3375)","public_title":"ZG184TC Flange (3375)","options":["ZG184TC Flange (3375)"],"price":4809,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":44023970726188,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG184TC_13a1707d-7bb0-4ab2-b5b7-f8b8c608fc7b.jpg?v=1781115139"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45724478472492,"title":"ZG202 Coupler (5482)","option1":"ZG202 Coupler (5482)","option2":null,"option3":null,"sku":"5482","requires_shipping":true,"taxable":true,"featured_image":{"id":53237735096620,"product_id":8459993907500,"position":3,"created_at":"2026-06-10T14:12:17-04:00","updated_at":"2026-06-10T14:12:19-04:00","alt":null,"width":600,"height":600,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG202.jpg?v=1781115139","variant_ids":[45724478472492]},"available":true,"name":"General Pump Electric Flange \u0026 Coupler | NEMA 56C Pump Motor Mount - ZG202 Coupler (5482)","public_title":"ZG202 Coupler (5482)","options":["ZG202 Coupler (5482)"],"price":14951,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":44023970758956,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG202.jpg?v=1781115139"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZF184.jpg?v=1781115140","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG184TC_13a1707d-7bb0-4ab2-b5b7-f8b8c608fc7b.jpg?v=1781115139","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG202.jpg?v=1781115139","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG56C-Coupler-1_d3497832-bde0-4446-9312-08e6f162c20b.jpg?v=1781115139","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_25dbf19a-dc5c-4540-bb60-791b6d1093c5.jpg?v=1781115139"],"featured_image":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZF184.jpg?v=1781115140","options":["Model"],"media":[{"alt":null,"id":44023970693420,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZF184.jpg?v=1781115140"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZF184.jpg?v=1781115140","width":600},{"alt":null,"id":44023970726188,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG184TC_13a1707d-7bb0-4ab2-b5b7-f8b8c608fc7b.jpg?v=1781115139"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG184TC_13a1707d-7bb0-4ab2-b5b7-f8b8c608fc7b.jpg?v=1781115139","width":600},{"alt":null,"id":44023970758956,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG202.jpg?v=1781115139"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG202.jpg?v=1781115139","width":600},{"alt":null,"id":44023970791724,"position":4,"preview_image":{"aspect_ratio":0.773,"height":792,"width":612,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG56C-Coupler-1_d3497832-bde0-4446-9312-08e6f162c20b.jpg?v=1781115139"},"aspect_ratio":0.773,"height":792,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/ZG56C-Coupler-1_d3497832-bde0-4446-9312-08e6f162c20b.jpg?v=1781115139","width":612},{"alt":"General Pump products available at North American Pressure Wash Outlet","id":44023970824492,"position":5,"preview_image":{"aspect_ratio":1.0,"height":288,"width":288,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_25dbf19a-dc5c-4540-bb60-791b6d1093c5.jpg?v=1781115139"},"aspect_ratio":1.0,"height":288,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_25dbf19a-dc5c-4540-bb60-791b6d1093c5.jpg?v=1781115139","width":288}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eGeneral Pump Electric Flanges \u0026amp; Couplers – NEMA 56C Motor Mount\u003c\/h2\u003e\u003cp\u003eConnect your General Pump to an electric motor cleanly and confidently with these \u003cstrong\u003eheavy-duty electric flanges and couplers\u003c\/strong\u003e. Engineered for quiet, low-maintenance operation, this cast aluminum flange and self-adjusting resilient coupling system is the professional-grade solution for electric-drive pressure washer builds and retrofits.\u003c\/p\u003e\u003ch3\u003eKey Features\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eHeavy-duty cast aluminum flange construction\u003c\/li\u003e\n\u003cli\u003eSelf-adjusting resilient coupling for quiet, smooth power transfer\u003c\/li\u003e\n\u003cli\u003eLow maintenance drive system\u003c\/li\u003e\n\u003cli\u003eCompact design for tight installations\u003c\/li\u003e\n\u003cli\u003eAll required mounting hardware included — ready to assemble\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eAssembly Instructions\u003c\/h3\u003e\u003col\u003e\n\u003cli\u003eEnsure pump and motor shafts are free of nicks and burrs; coat with anti-seize grease and install keys.\u003c\/li\u003e\n\u003cli\u003eRemove and discard retainer where applicable.\u003c\/li\u003e\n\u003cli\u003eMount flange on pump, aligning pump shaft key with slot on flange.\u003c\/li\u003e\n\u003cli\u003eMount male coupler half on pump — shaft end flush with coupler end. Apply Loctite 242 to set screw threads and tighten.\u003c\/li\u003e\n\u003cli\u003eMount female coupler half on motor — shaft end flush with coupler end. Apply Loctite 242 to set screw threads and tighten.\u003c\/li\u003e\n\u003cli\u003eMount pump-flange assembly to motor. \u003cstrong\u003ePump must be horizontal for proper lubrication.\u003c\/strong\u003e\n\u003c\/li\u003e\n\u003cli\u003eAfter assembly, verify ~1\/8\" space between coupler halves through the slot in the flange.\u003c\/li\u003e\n\u003c\/ol\u003e"}
