{"id":8460298453292,"title":"100879 FLOW SWITCH TMT, PILOT, 12 GPM (5193)","handle":"100879-tmt-flow-switch-pilot-12gpm","description":"\u003cp\u003e\u003cstrong\u003eThe 100879 flow switch\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eFEATURES:\u003c\/strong\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eMicro switch technology eliminates reed switch\u003c\/li\u003e\n\u003cli\u003eHighpressure inline flow switch\u003c\/li\u003e\n\u003cli\u003eActivates with as little as .5 gpm flow\u003c\/li\u003e\n\u003cli\u003eMinimal pressure drop up to 12 gpm\u003c\/li\u003e\n\u003cli\u003eMount in vertical position\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eSPECIFICATIONS:\u003c\/strong\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e4000 PSI operating pressure\u003c\/li\u003e\n\u003cli\u003e12 GPM maximum flow\u003c\/li\u003e\n\u003cli\u003e40-180 F operating temperature\u003c\/li\u003e\n\u003cli\u003eLead length: 48\" 18awg\u003c\/li\u003e\n\u003cli\u003e250 VAC switching voltage maximum\u003c\/li\u003e\n\u003cli\u003e5 Amps switching current maximum\u003c\/li\u003e\n\u003cli\u003e30 OHM contact resistance with leads\u003c\/li\u003e\n\u003cli\u003e200,000 operations electrical service life\u003c\/li\u003e\n\u003cli\u003e10 million operations mechanical service life\u003c\/li\u003e\n\u003cli\u003eInlet: 3\/8\" FPT\u003c\/li\u003e\n\u003cli\u003eDischarge: 3\/8\" FPT\u003c\/li\u003e\n\u003cli\u003ePilot: 1\/4\" hose barb\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eInstall the flow switch \u003cstrong\u003eVERTICALLY\u003c\/strong\u003e\u003cspan class=\"Apple-converted-space\"\u003e \u003c\/span\u003eto the output side of the unloader, with the 2 conductor lead wires exiting from the top. If your system uses a downstream chemical injector, it should be mounted on the output side of the flow switch. Pilot model requires a direct connection to the water supply feed line to provide a pilot signal. This is accomplished by installing a tee fitting (with a 1\/4\" hose barb fitting) directly in the water supply feed line. The tube must be installed before the float valve. Install an appropriate length of 1\/4\" ID reinforced polyvinyl tubing between the tee fitting and the valve pilot port.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e","published_at":"2023-07-17T10:45:40-04:00","created_at":"2023-07-17T10:45:43-04:00","vendor":"General Pump","type":"Switches","tags":["100879","12 gpm","atlanta pressure wash supplies","flow switch","gainesville georgia","georgia power wash store","georgia pressure wash store","georgia pressure wash supplies","north american pressure wash outlet","North Georgia pressure wash supplies","power wash equipment","pressure wash equipment","pressure wash parts delivered"],"price":17534,"price_min":17534,"price_max":17534,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45725454500140,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"5193","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"100879 FLOW SWITCH TMT, PILOT, 12 GPM (5193)","public_title":null,"options":["Default Title"],"price":17534,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/tmt-pilot-switch.jpg?v=1732224721","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100879-GPFloSwtch.jpg?v=1732224721","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_94581dbf-f656-4706-985a-62537a3b821b.jpg?v=1732224721"],"featured_image":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/tmt-pilot-switch.jpg?v=1732224721","options":["Title"],"media":[{"alt":null,"id":40147610960172,"position":1,"preview_image":{"aspect_ratio":1.311,"height":219,"width":287,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/tmt-pilot-switch.jpg?v=1732224721"},"aspect_ratio":1.311,"height":219,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/tmt-pilot-switch.jpg?v=1732224721","width":287},{"alt":null,"id":40147610992940,"position":2,"preview_image":{"aspect_ratio":0.773,"height":792,"width":612,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100879-GPFloSwtch.jpg?v=1732224721"},"aspect_ratio":0.773,"height":792,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100879-GPFloSwtch.jpg?v=1732224721","width":612},{"alt":null,"id":40147611025708,"position":3,"preview_image":{"aspect_ratio":1.0,"height":288,"width":288,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_94581dbf-f656-4706-985a-62537a3b821b.jpg?v=1732224721"},"aspect_ratio":1.0,"height":288,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_94581dbf-f656-4706-985a-62537a3b821b.jpg?v=1732224721","width":288}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cstrong\u003eThe 100879 flow switch\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eFEATURES:\u003c\/strong\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eMicro switch technology eliminates reed switch\u003c\/li\u003e\n\u003cli\u003eHighpressure inline flow switch\u003c\/li\u003e\n\u003cli\u003eActivates with as little as .5 gpm flow\u003c\/li\u003e\n\u003cli\u003eMinimal pressure drop up to 12 gpm\u003c\/li\u003e\n\u003cli\u003eMount in vertical position\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eSPECIFICATIONS:\u003c\/strong\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e4000 PSI operating pressure\u003c\/li\u003e\n\u003cli\u003e12 GPM maximum flow\u003c\/li\u003e\n\u003cli\u003e40-180 F operating temperature\u003c\/li\u003e\n\u003cli\u003eLead length: 48\" 18awg\u003c\/li\u003e\n\u003cli\u003e250 VAC switching voltage maximum\u003c\/li\u003e\n\u003cli\u003e5 Amps switching current maximum\u003c\/li\u003e\n\u003cli\u003e30 OHM contact resistance with leads\u003c\/li\u003e\n\u003cli\u003e200,000 operations electrical service life\u003c\/li\u003e\n\u003cli\u003e10 million operations mechanical service life\u003c\/li\u003e\n\u003cli\u003eInlet: 3\/8\" FPT\u003c\/li\u003e\n\u003cli\u003eDischarge: 3\/8\" FPT\u003c\/li\u003e\n\u003cli\u003ePilot: 1\/4\" hose barb\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eInstall the flow switch \u003cstrong\u003eVERTICALLY\u003c\/strong\u003e\u003cspan class=\"Apple-converted-space\"\u003e \u003c\/span\u003eto the output side of the unloader, with the 2 conductor lead wires exiting from the top. If your system uses a downstream chemical injector, it should be mounted on the output side of the flow switch. Pilot model requires a direct connection to the water supply feed line to provide a pilot signal. This is accomplished by installing a tee fitting (with a 1\/4\" hose barb fitting) directly in the water supply feed line. The tube must be installed before the float valve. Install an appropriate length of 1\/4\" ID reinforced polyvinyl tubing between the tee fitting and the valve pilot port.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e"}

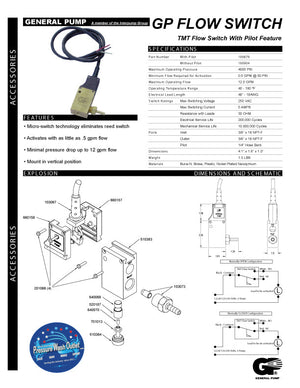

100879 FLOW SWITCH TMT, PILOT, 12 GPM (5193)
Related Products
{"id":8460071371052,"title":"HI VOLUME FLOW SWITCH by GENERAL PUMP (7042)","handle":"7042-hi-volume-flow-switch-by-general-pump","description":"\u003cul\u003e\n\u003cli\u003eMicro switch tech eliminates reed switch\u003c\/li\u003e\n\u003cli\u003eActivation below 4 GPM\u003c\/li\u003e\n\u003cli\u003eMinimal pressure drop up to 25 GPM flow\u003c\/li\u003e\n\u003cli\u003eMount in vertical position\u003c\/li\u003e\n\u003cli\u003e4000 PSI @ 10 GPM\u003c\/li\u003e\n\u003cli\u003e3000 PSI @ 25 GPM\u003c\/li\u003e\n\u003cli\u003e180 degree F max\u003c\/li\u003e\n\u003cli\u003e1\/2\" FPT inlet and outlet\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2023-07-17T09:44:23-04:00","created_at":"2023-07-17T09:44:25-04:00","vendor":"General Pump","type":"Switches","tags":["atlanta pressure wash supplies","flow switch","georgia pressure wash store","georgia pressure wash supplies","hi flo flow switch","industrial pressure washer","north american pressure wash outlet","North Georgia pressure wash supplies","parts for pressure washers","power wash equipment","pressure wash equipment","pressure wash parts delivered","pressure wash pump","pressure wash pumps","pressure wash supply store","pressure washer parts delivered","pressurewashpartsdelivered"],"price":16500,"price_min":16500,"price_max":16500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45724663709996,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"7042","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HI VOLUME FLOW SWITCH by GENERAL PUMP (7042)","public_title":null,"options":["Default Title"],"price":16500,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/s-l225_517f70e6-a4e0-49b8-ae66-ca3e9fde9aef.jpg?v=1732220471","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_6186ee7a-ec05-4dca-974c-4a645955e0e3.jpg?v=1732220471"],"featured_image":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/s-l225_517f70e6-a4e0-49b8-ae66-ca3e9fde9aef.jpg?v=1732220471","options":["Title"],"media":[{"alt":"HI VOLUME FLOW SWITCH by GENERAL PUMP","id":40147092308268,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/s-l225_517f70e6-a4e0-49b8-ae66-ca3e9fde9aef.jpg?v=1732220471"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/s-l225_517f70e6-a4e0-49b8-ae66-ca3e9fde9aef.jpg?v=1732220471","width":500},{"alt":"General Pump products available at North American Pressure Wash Outlet","id":40147092341036,"position":2,"preview_image":{"aspect_ratio":1.0,"height":288,"width":288,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_6186ee7a-ec05-4dca-974c-4a645955e0e3.jpg?v=1732220471"},"aspect_ratio":1.0,"height":288,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_6186ee7a-ec05-4dca-974c-4a645955e0e3.jpg?v=1732220471","width":288}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cul\u003e\n\u003cli\u003eMicro switch tech eliminates reed switch\u003c\/li\u003e\n\u003cli\u003eActivation below 4 GPM\u003c\/li\u003e\n\u003cli\u003eMinimal pressure drop up to 25 GPM flow\u003c\/li\u003e\n\u003cli\u003eMount in vertical position\u003c\/li\u003e\n\u003cli\u003e4000 PSI @ 10 GPM\u003c\/li\u003e\n\u003cli\u003e3000 PSI @ 25 GPM\u003c\/li\u003e\n\u003cli\u003e180 degree F max\u003c\/li\u003e\n\u003cli\u003e1\/2\" FPT inlet and outlet\u003c\/li\u003e\n\u003c\/ul\u003e"}
HI VOLUME FLOW SWITCH by GENERAL PUMP (7042)
$165.00
Micro switch tech eliminates reed switch Activation below 4 GPM Minimal pressure drop up to 25 GPM flow Mount in vertical position 4000 PSI @ 10 GPM 3000 PSI @ 25 GPM 180 degree F max 1/2" FPT inlet and outlet
Sale
FLOW SWITCHES by MECLINE
From $38.39 $45.10
{"id":8460009767212,"title":"FLOW SWITCHES by MECLINE","handle":"flow-switches-by-mecline","description":"\u003cp\u003eConsider these flow switches by Mecline. \u003c\/p\u003e\n\u003cp\u003eRated at:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e8 GPM max\u003c\/li\u003e\n\u003cli\u003e180 degrees F max\u003c\/li\u003e\n\u003cli\u003e4350 PSI max\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eFeatures:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e2 wires\u003c\/li\u003e\n\u003cli\u003e3\/8\" FPT I\/O\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eAvailable in vertical and horizontal mounts. \u003c\/p\u003e","published_at":"2023-07-17T09:25:27-04:00","created_at":"2023-07-17T09:25:30-04:00","vendor":"Mecline","type":"Flow Switch","tags":["atlanta pressure wash supplies","flow switch","georgia power wash store","georgia pressure wash store","georgia pressure wash supplies","industrial pressure washer","north american pressure wash outlet","North Georgia pressure wash supplies","parts for pressure washers","power wash equipment","pressure wash equipment","pressure wash parts delivered","pressure washer parts delivered","pressurewashpartsdelivered"],"price":3839,"price_min":3839,"price_max":6199,"available":true,"price_varies":true,"compare_at_price":4510,"compare_at_price_min":4510,"compare_at_price_max":6899,"compare_at_price_varies":true,"variants":[{"id":45724509208876,"title":"Vertical","option1":"Vertical","option2":null,"option3":null,"sku":"6169","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FLOW SWITCHES by MECLINE - Vertical","public_title":"Vertical","options":["Vertical"],"price":6199,"weight":454,"compare_at_price":6350,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45724509241644,"title":"Horizontal","option1":"Horizontal","option2":null,"option3":null,"sku":"6170","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FLOW SWITCHES by MECLINE - Horizontal","public_title":"Horizontal","options":["Horizontal"],"price":5985,"weight":454,"compare_at_price":6899,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45724509274412,"title":"MV Reed Switch","option1":"MV Reed Switch","option2":null,"option3":null,"sku":"6171","requires_shipping":true,"taxable":true,"featured_image":{"id":48034596946220,"product_id":8460009767212,"position":3,"created_at":"2024-11-21T15:00:19-05:00","updated_at":"2024-11-21T15:00:19-05:00","alt":"FLOW SWITCHES by MECLINE","width":250,"height":250,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/Reed-switch-rempl.-ST-5-ST-6-ST-5VH.jpg?v=1732219219","variant_ids":[45724509274412]},"available":true,"name":"FLOW SWITCHES by MECLINE - MV Reed Switch","public_title":"MV Reed Switch","options":["MV Reed Switch"],"price":3839,"weight":454,"compare_at_price":4510,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"FLOW SWITCHES by MECLINE","id":40146965791020,"position":3,"preview_image":{"aspect_ratio":1.0,"height":250,"width":250,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/Reed-switch-rempl.-ST-5-ST-6-ST-5VH.jpg?v=1732219219"}},"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/6169__69805.1383897633.220.220_720x_1f547652-5ec6-46f0-90ba-9bdb04b2843b.jpg?v=1732219219","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/proud-retailer-mecline_720x_e376b687-7363-4cdb-aef4-3883ad0e1029.jpg?v=1732219219","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/Reed-switch-rempl.-ST-5-ST-6-ST-5VH.jpg?v=1732219219","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/thank-you_ead5c30e-0bdd-49d1-bdef-5a93e8ecbd40.jpg?v=1732219219"],"featured_image":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/6169__69805.1383897633.220.220_720x_1f547652-5ec6-46f0-90ba-9bdb04b2843b.jpg?v=1732219219","options":["Options"],"media":[{"alt":"FLOW SWITCHES by MECLINE","id":40146965758252,"position":1,"preview_image":{"aspect_ratio":1.0,"height":220,"width":220,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/6169__69805.1383897633.220.220_720x_1f547652-5ec6-46f0-90ba-9bdb04b2843b.jpg?v=1732219219"},"aspect_ratio":1.0,"height":220,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/6169__69805.1383897633.220.220_720x_1f547652-5ec6-46f0-90ba-9bdb04b2843b.jpg?v=1732219219","width":220},{"alt":null,"id":40146965856556,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/proud-retailer-mecline_720x_e376b687-7363-4cdb-aef4-3883ad0e1029.jpg?v=1732219219"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/proud-retailer-mecline_720x_e376b687-7363-4cdb-aef4-3883ad0e1029.jpg?v=1732219219","width":500},{"alt":"FLOW SWITCHES by MECLINE","id":40146965791020,"position":3,"preview_image":{"aspect_ratio":1.0,"height":250,"width":250,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/Reed-switch-rempl.-ST-5-ST-6-ST-5VH.jpg?v=1732219219"},"aspect_ratio":1.0,"height":250,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/Reed-switch-rempl.-ST-5-ST-6-ST-5VH.jpg?v=1732219219","width":250},{"alt":"Industrial Pressure Washers available at North American Pressure Wash Outlet","id":40146965823788,"position":4,"preview_image":{"aspect_ratio":1.0,"height":288,"width":288,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/thank-you_ead5c30e-0bdd-49d1-bdef-5a93e8ecbd40.jpg?v=1732219219"},"aspect_ratio":1.0,"height":288,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/thank-you_ead5c30e-0bdd-49d1-bdef-5a93e8ecbd40.jpg?v=1732219219","width":288}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eConsider these flow switches by Mecline. \u003c\/p\u003e\n\u003cp\u003eRated at:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e8 GPM max\u003c\/li\u003e\n\u003cli\u003e180 degrees F max\u003c\/li\u003e\n\u003cli\u003e4350 PSI max\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eFeatures:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e2 wires\u003c\/li\u003e\n\u003cli\u003e3\/8\" FPT I\/O\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eAvailable in vertical and horizontal mounts. \u003c\/p\u003e"}
FLOW SWITCHES by MECLINE
$61.99 $63.50
Consider these flow switches by Mecline. Rated at: 8 GPM max 180 degrees F max 4350 PSI max Features: 2 wires 3/8" FPT I/O Available in vertical and horizontal mounts.
{"id":8460459671852,"title":"103018 PISTON ASSY MAGNETIC FLOW SWITCH (3027)","handle":"103018-piston-assy-magnetic-flow-switch","description":"\u003cp\u003e103018\u003c\/p\u003e\n\u003cp\u003ePISTON ASSY\u003c\/p\u003e\n\u003cp\u003eMAGNETIC FLOW SWITCH\u003c\/p\u003e\n\u003cp\u003eGENERAL PUMP\u003c\/p\u003e","published_at":"2023-07-17T11:15:25-04:00","created_at":"2023-07-17T11:15:25-04:00","vendor":"General Pump","type":"Switches","tags":["103018","atlanta pressure wash supplies","flow switch","gainesville georgia","General Pump","georgia power wash store","georgia pressure wash store","georgia pressure wash supplies","industrial pressure washer","north american pressure wash outlet","North Georgia pressure wash supplies","parts for pressure washers","power wash equipment","pressure wash equipment","pressure wash parts delivered","pressure washer parts delivered"],"price":1335,"price_min":1335,"price_max":1335,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45725852631340,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"3027","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"103018 PISTON ASSY MAGNETIC FLOW SWITCH (3027)","public_title":null,"options":["Default Title"],"price":1335,"weight":454,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/103018-stainless-steel-piston_fbf45873-b75a-4ee5-a04b-102bbb0797b0.jpg?v=1732226761","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_05537671-abd7-41b8-b6ef-6c23ed9fadf3.jpg?v=1732226761"],"featured_image":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/103018-stainless-steel-piston_fbf45873-b75a-4ee5-a04b-102bbb0797b0.jpg?v=1732226761","options":["Title"],"media":[{"alt":"103018 Piston Assy Magnetic Flow Switches available at North American Pressure Wash Outlet","id":40147880411436,"position":1,"preview_image":{"aspect_ratio":1.62,"height":790,"width":1280,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/103018-stainless-steel-piston_fbf45873-b75a-4ee5-a04b-102bbb0797b0.jpg?v=1732226761"},"aspect_ratio":1.62,"height":790,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/103018-stainless-steel-piston_fbf45873-b75a-4ee5-a04b-102bbb0797b0.jpg?v=1732226761","width":1280},{"alt":"General Pump products available at North American Pressure Wash Outlet","id":40147880444204,"position":2,"preview_image":{"aspect_ratio":1.0,"height":288,"width":288,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_05537671-abd7-41b8-b6ef-6c23ed9fadf3.jpg?v=1732226761"},"aspect_ratio":1.0,"height":288,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_05537671-abd7-41b8-b6ef-6c23ed9fadf3.jpg?v=1732226761","width":288}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e103018\u003c\/p\u003e\n\u003cp\u003ePISTON ASSY\u003c\/p\u003e\n\u003cp\u003eMAGNETIC FLOW SWITCH\u003c\/p\u003e\n\u003cp\u003eGENERAL PUMP\u003c\/p\u003e"}
103018 PISTON ASSY MAGNETIC FLOW SWITCH (3027)
$13.35
103018 PISTON ASSY MAGNETIC FLOW SWITCH GENERAL PUMP
{"id":8460286591276,"title":"100975 TMT FLOW SWITCH (5393)","handle":"100975-tmt-flow-switch-12gpm-3-8fpt-i-o","description":"\u003cp\u003e\u003cstrong\u003eThe 100975 TMT flow switch features:\u003c\/strong\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eMicro switch tech eliminates reed switch\u003c\/li\u003e\n\u003cli\u003eCan be mounted in any position\u003c\/li\u003e\n\u003cli\u003eActivates with 1.25 GPM flow @ 50 PSI\u003c\/li\u003e\n\u003cli\u003e12 GPM maximum\u003c\/li\u003e\n\u003cli\u003e5000 PSI maximum\u003c\/li\u003e\n\u003cli\u003e180 degrees F maximum\u003c\/li\u003e\n\u003cli\u003e3\/8\" fpt inlet and outlet\u003c\/li\u003e\n\u003cli\u003eVoltage: 250v ac\u003c\/li\u003e\n\u003cli\u003e48\" lead\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2023-07-17T10:42:33-04:00","created_at":"2023-07-17T10:42:38-04:00","vendor":"General Pump","type":"Switches","tags":["100975","12 gpm","5000 PSI","atlanta pressure wash supplies","flow switch","georgia power wash store","georgia pressure wash store","georgia pressure wash supplies","industrial pressure washer","north american pressure wash outlet","North Georgia pressure wash supplies","power wash equipment","pressure wash equipment","pressure wash parts delivered","pressure wash supply store","pressure washer parts delivered"],"price":6354,"price_min":6354,"price_max":6354,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45725399941420,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"5393","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"100975 TMT FLOW SWITCH (5393)","public_title":null,"options":["Default Title"],"price":6354,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5393__92523.1383897633.220.220.jpg?v=1732224497","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5393-100975-TMTFlowSwitch.jpg?v=1732224497","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100975-TMTFlowSwitch-400x400.png?v=1732224497","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_72b1f6e0-823b-49c1-a967-107f0979f01f.jpg?v=1732224497"],"featured_image":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5393__92523.1383897633.220.220.jpg?v=1732224497","options":["Title"],"media":[{"alt":"100716 FLOW SWITCH","id":40147580322092,"position":1,"preview_image":{"aspect_ratio":0.777,"height":220,"width":171,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5393__92523.1383897633.220.220.jpg?v=1732224497"},"aspect_ratio":0.777,"height":220,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5393__92523.1383897633.220.220.jpg?v=1732224497","width":171},{"alt":"100716 FLOW SWITCH","id":40147580354860,"position":2,"preview_image":{"aspect_ratio":0.773,"height":792,"width":612,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5393-100975-TMTFlowSwitch.jpg?v=1732224497"},"aspect_ratio":0.773,"height":792,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5393-100975-TMTFlowSwitch.jpg?v=1732224497","width":612},{"alt":"100716 FLOW SWITCH","id":40147580387628,"position":3,"preview_image":{"aspect_ratio":1.0,"height":400,"width":400,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100975-TMTFlowSwitch-400x400.png?v=1732224497"},"aspect_ratio":1.0,"height":400,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100975-TMTFlowSwitch-400x400.png?v=1732224497","width":400},{"alt":"General Pump products available at North American Pressure Wash Outlet","id":40147580453164,"position":4,"preview_image":{"aspect_ratio":1.0,"height":288,"width":288,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_72b1f6e0-823b-49c1-a967-107f0979f01f.jpg?v=1732224497"},"aspect_ratio":1.0,"height":288,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_72b1f6e0-823b-49c1-a967-107f0979f01f.jpg?v=1732224497","width":288}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cstrong\u003eThe 100975 TMT flow switch features:\u003c\/strong\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eMicro switch tech eliminates reed switch\u003c\/li\u003e\n\u003cli\u003eCan be mounted in any position\u003c\/li\u003e\n\u003cli\u003eActivates with 1.25 GPM flow @ 50 PSI\u003c\/li\u003e\n\u003cli\u003e12 GPM maximum\u003c\/li\u003e\n\u003cli\u003e5000 PSI maximum\u003c\/li\u003e\n\u003cli\u003e180 degrees F maximum\u003c\/li\u003e\n\u003cli\u003e3\/8\" fpt inlet and outlet\u003c\/li\u003e\n\u003cli\u003eVoltage: 250v ac\u003c\/li\u003e\n\u003cli\u003e48\" lead\u003c\/li\u003e\n\u003c\/ul\u003e"}
100975 TMT FLOW SWITCH (5393)
$63.54
The 100975 TMT flow switch features: Micro switch tech eliminates reed switch Can be mounted in any position Activates with 1.25 GPM flow @ 50 PSI 12 GPM maximum 5000 PSI maximum 180 degrees F maximum 3/8" fpt inlet and outlet Voltage: 250v ac 48" lead
{"id":8460278137132,"title":"100716 FLOW SWITCH 12 GPM 5000 PSI .2A 250 (5579)","handle":"100716-flow-switch-12gpm-5000psi-2a-250","description":"\u003cp\u003eThe 100716 flow switch can mount in any direction.\u003c\/p\u003e\n\u003cp\u003eActivates with flows as low as 0.5 GPM\u003c\/p\u003e\n\u003cp\u003eIdeal for low amp applications\u003c\/p\u003e\n\u003cp\u003ePerfect or triggering a solenoid\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e12 GPM maximum\u003c\/li\u003e\n\u003cli\u003e5000 PSI maximum\u003c\/li\u003e\n\u003cli\u003e175 degrees F maximum\u003c\/li\u003e\n\u003cli\u003e3\/8\" FPT inlet\/outlet\u003c\/li\u003e\n\u003cli\u003e100716\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e","published_at":"2023-07-17T10:39:48-04:00","created_at":"2023-07-17T10:39:50-04:00","vendor":"General Pump","type":"Switches","tags":["100716","atlanta pressure wash supplies","flow switch","General Pump","georgia power wash store","georgia pressure wash store","georgia pressure wash supplies","industrial pressure washer","north american pressure wash outlet","North Georgia pressure wash supplies","power wash equipment","pressure wash equipment","pressure wash parts delivered","pressure wash pump","pressure washer parts delivered"],"price":8371,"price_min":8371,"price_max":8371,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45725366485292,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"5579","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"100716 FLOW SWITCH 12 GPM 5000 PSI .2A 250 (5579)","public_title":null,"options":["Default Title"],"price":8371,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5579.jpg?v=1732224295","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_d1bed968-831b-45ca-a8f8-8bc504d0e24d.jpg?v=1732224295"],"featured_image":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5579.jpg?v=1732224295","options":["Title"],"media":[{"alt":"100716 FLOW SWITCH","id":40147551355180,"position":1,"preview_image":{"aspect_ratio":1.428,"height":152,"width":217,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5579.jpg?v=1732224295"},"aspect_ratio":1.428,"height":152,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/5579.jpg?v=1732224295","width":217},{"alt":"General Pump products available at North American Pressure Wash Outlet","id":40147551387948,"position":2,"preview_image":{"aspect_ratio":1.0,"height":288,"width":288,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_d1bed968-831b-45ca-a8f8-8bc504d0e24d.jpg?v=1732224295"},"aspect_ratio":1.0,"height":288,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_d1bed968-831b-45ca-a8f8-8bc504d0e24d.jpg?v=1732224295","width":288}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe 100716 flow switch can mount in any direction.\u003c\/p\u003e\n\u003cp\u003eActivates with flows as low as 0.5 GPM\u003c\/p\u003e\n\u003cp\u003eIdeal for low amp applications\u003c\/p\u003e\n\u003cp\u003ePerfect or triggering a solenoid\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e12 GPM maximum\u003c\/li\u003e\n\u003cli\u003e5000 PSI maximum\u003c\/li\u003e\n\u003cli\u003e175 degrees F maximum\u003c\/li\u003e\n\u003cli\u003e3\/8\" FPT inlet\/outlet\u003c\/li\u003e\n\u003cli\u003e100716\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e"}
100716 FLOW SWITCH 12 GPM 5000 PSI .2A 250 (5579)
$83.71
The 100716 flow switch can mount in any direction. Activates with flows as low as 0.5 GPM Ideal for low amp applications Perfect or triggering a solenoid 12 GPM maximum 5000 PSI maximum 175 degrees F maximum 3/8" FPT inlet/outlet 100716
{"id":8460460065068,"title":"100329 FLOW SWITCH W\/PILOT (3022)","handle":"100329-flow-switch-w-pilot-16gpm-5000psi","description":"\u003cp\u003eThe 100329 flow switch by GP is designed to operate in response to low volume, low pressure flow and still allow for a high pump output.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003ereed switch\u003c\/li\u003e\n\u003cli\u003eactivates w .75 GPM flow @ 18 PSI\u003c\/li\u003e\n\u003cli\u003emount VERTICALLY\u003c\/li\u003e\n\u003cli\u003ePhoenix flow switch\u003c\/li\u003e\n\u003cli\u003e16 GPM\u003c\/li\u003e\n\u003cli\u003e5000 PSI maximum\u003c\/li\u003e\n\u003cli\u003e190 degrees F maximum\u003c\/li\u003e\n\u003cli\u003e96\" lead wire\u003c\/li\u003e\n\u003cli\u003e1\/4\" pilot barb\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003ePilot Valve - 100331\u003c\/p\u003e","published_at":"2023-07-17T11:15:30-04:00","created_at":"2023-07-17T11:15:33-04:00","vendor":"General Pump","type":"Switches","tags":["100329","atlanta pressure wash supplies","flow switch","georgia power wash store","georgia pressure wash store","georgia pressure wash supplies","industrial pressure washer","north american pressure wash outlet","North Georgia pressure wash supplies","parts for pressure washers","power wash equipment","pressure wash equipment","pressure wash parts delivered","pressure wash supply store","pressure washer parts delivered","pressurewashpartsdelivered"],"price":26500,"price_min":26500,"price_max":26500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45725853417772,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"3022","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"100329 FLOW SWITCH W\/PILOT (3022)","public_title":null,"options":["Default Title"],"price":26500,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100329.jpg?v=1732226771","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_c2efd0aa-110d-42b5-b924-5a0674833008.jpg?v=1732226771","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100329-Flow.jpg?v=1732226771","\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100329-Flow-page2.jpg?v=1732226771"],"featured_image":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100329.jpg?v=1732226771","options":["Title"],"media":[{"alt":"100329 FLOW SWITCH W\/PILOT","id":40147881361708,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100329.jpg?v=1732226771"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100329.jpg?v=1732226771","width":600},{"alt":null,"id":40147881460012,"position":2,"preview_image":{"aspect_ratio":1.0,"height":288,"width":288,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_c2efd0aa-110d-42b5-b924-5a0674833008.jpg?v=1732226771"},"aspect_ratio":1.0,"height":288,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/GP-RETAILER_720x_c2efd0aa-110d-42b5-b924-5a0674833008.jpg?v=1732226771","width":288},{"alt":"100329 FLOW SWITCH W\/PILOT","id":40147881394476,"position":3,"preview_image":{"aspect_ratio":0.773,"height":792,"width":612,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100329-Flow.jpg?v=1732226771"},"aspect_ratio":0.773,"height":792,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100329-Flow.jpg?v=1732226771","width":612},{"alt":"100329 FLOW SWITCH W\/PILOT","id":40147881427244,"position":4,"preview_image":{"aspect_ratio":0.773,"height":792,"width":612,"src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100329-Flow-page2.jpg?v=1732226771"},"aspect_ratio":0.773,"height":792,"media_type":"image","src":"\/\/pressurewashpartsdelivered.com\/cdn\/shop\/files\/100329-Flow-page2.jpg?v=1732226771","width":612}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe 100329 flow switch by GP is designed to operate in response to low volume, low pressure flow and still allow for a high pump output.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003ereed switch\u003c\/li\u003e\n\u003cli\u003eactivates w .75 GPM flow @ 18 PSI\u003c\/li\u003e\n\u003cli\u003emount VERTICALLY\u003c\/li\u003e\n\u003cli\u003ePhoenix flow switch\u003c\/li\u003e\n\u003cli\u003e16 GPM\u003c\/li\u003e\n\u003cli\u003e5000 PSI maximum\u003c\/li\u003e\n\u003cli\u003e190 degrees F maximum\u003c\/li\u003e\n\u003cli\u003e96\" lead wire\u003c\/li\u003e\n\u003cli\u003e1\/4\" pilot barb\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003ePilot Valve - 100331\u003c\/p\u003e"}
100329 FLOW SWITCH W/PILOT (3022)
$265.00
The 100329 flow switch by GP is designed to operate in response to low volume, low pressure flow and still allow for a high pump output. reed switch activates w .75 GPM flow @ 18 PSI mount VERTICALLY Phoenix flow switch 16 GPM 5000 PSI maximum 190 degrees F maximum 96" lead wire 1/4" pilot barb Pilot Valve - 100331
